Luna-1050

Diode-pumped solid-state femtosecond laser oscillator

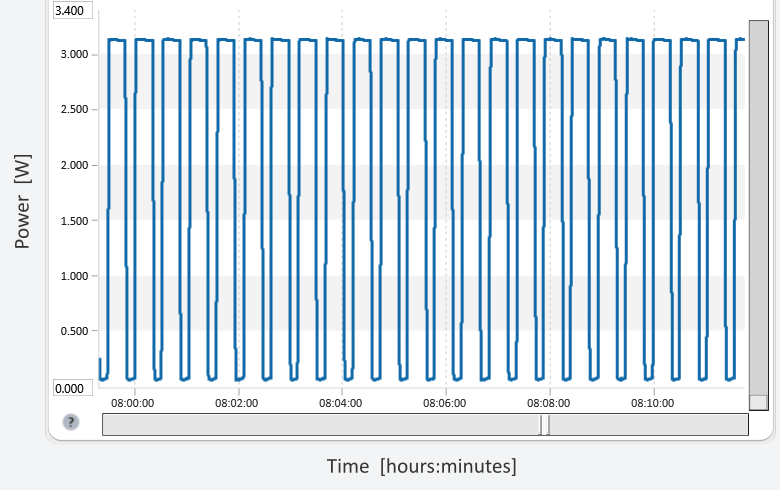

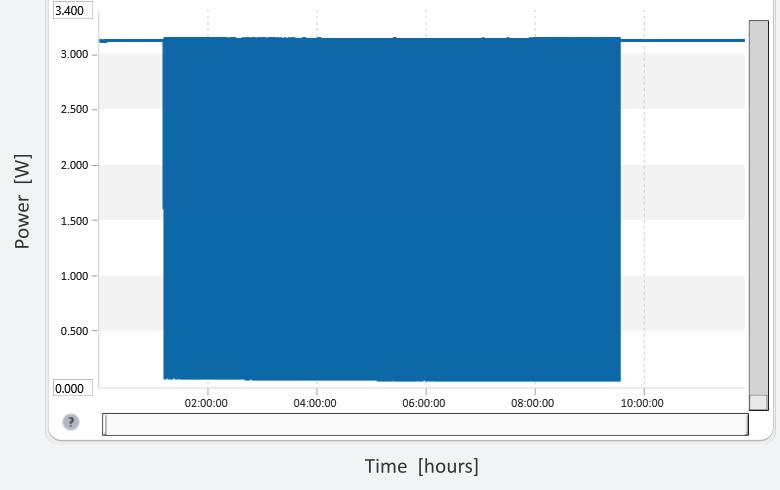

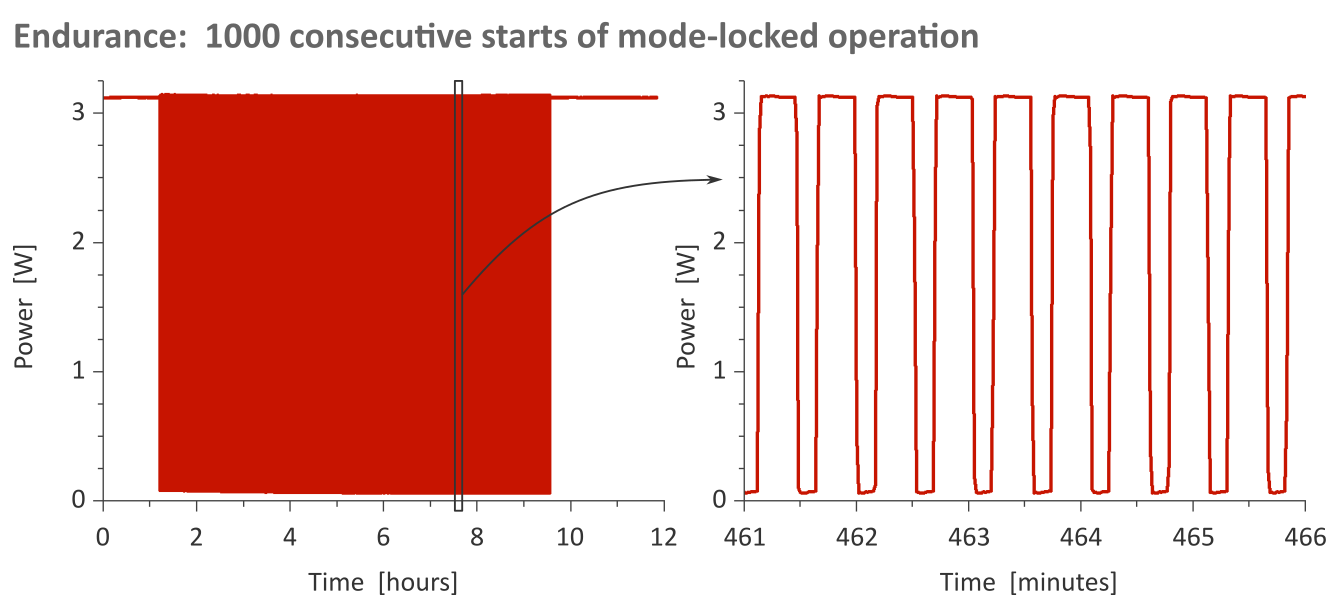

Luna-1050 is an ytterbium diode-pumped solid-state femtosecond laser. The Luna-1050 series includes three models configured to optimize the trade-off between average power and pulse duration. Robust DPSS technology, single-box water-stabilized optical head, and reliable self-starting mode locking ensure consistent long-term performance. Optional kinematic-coupling mounting system can be implemented to thermally isolate the laser head from the optical table. Short-pulse models with up to 16 nm FWHM bandwidth are available upon request.

Applications

Specifications



Average power

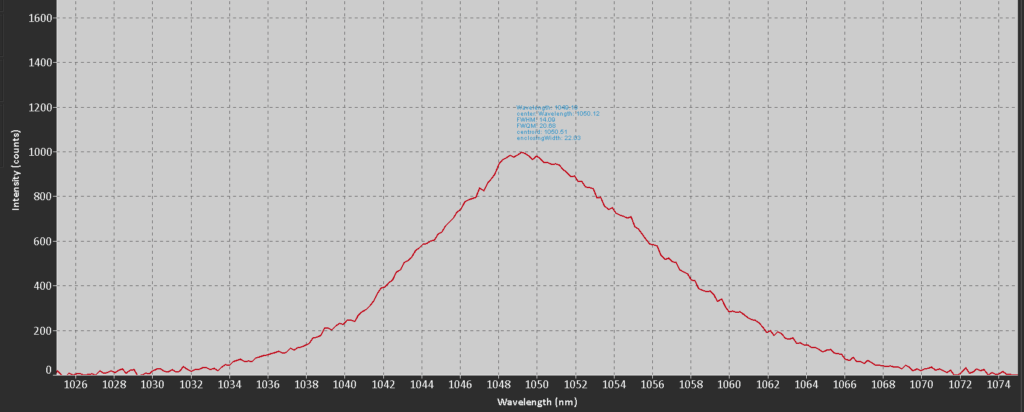

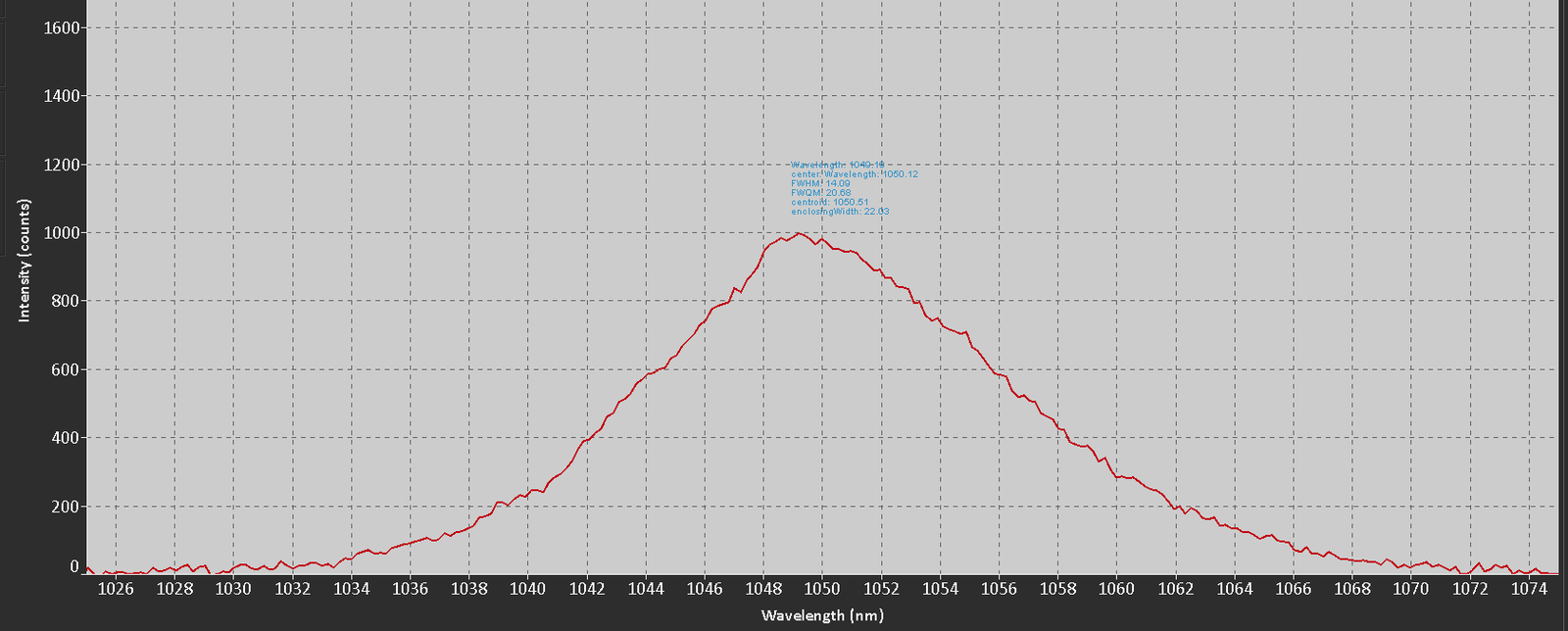

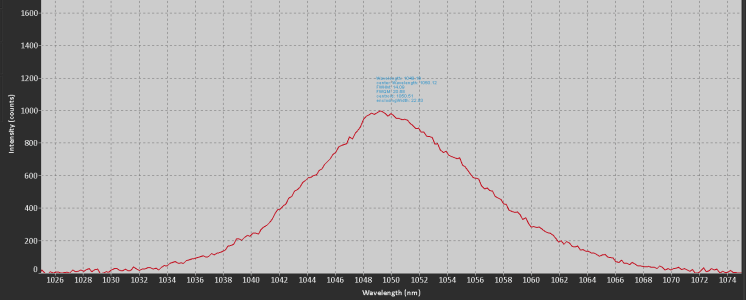

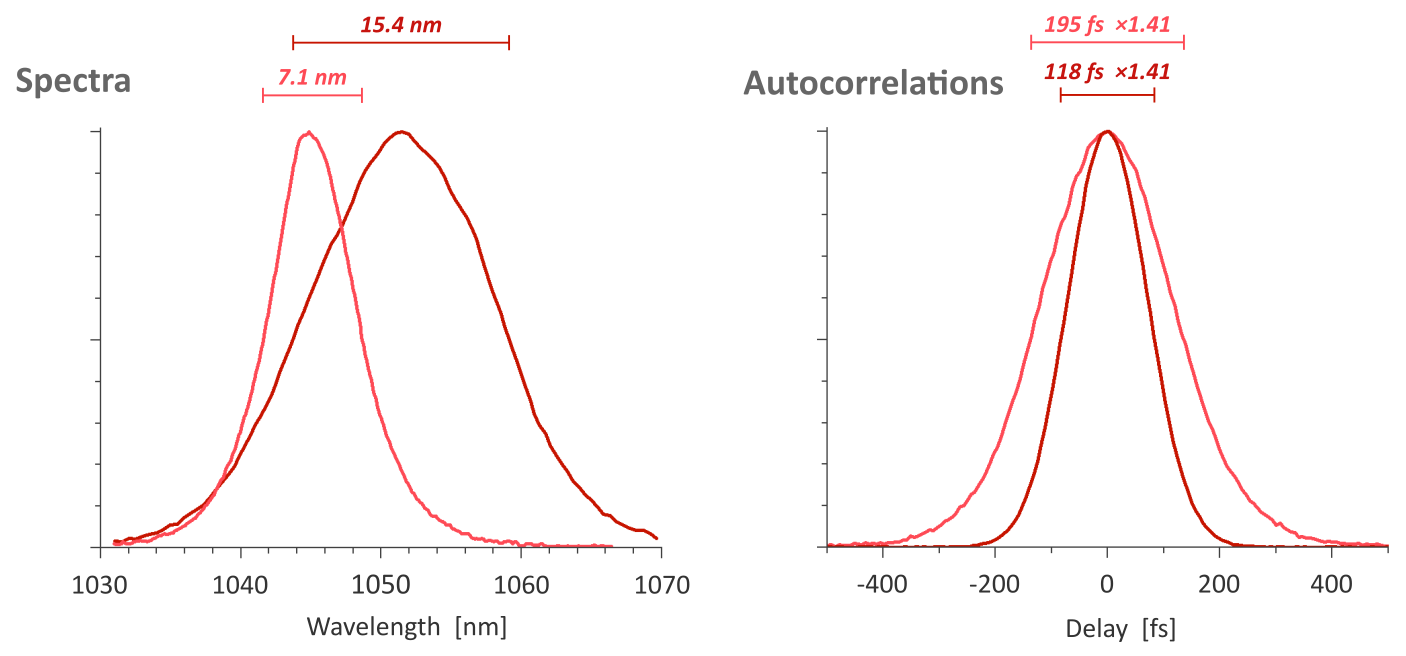

Spectral bandwidth (FWHM)

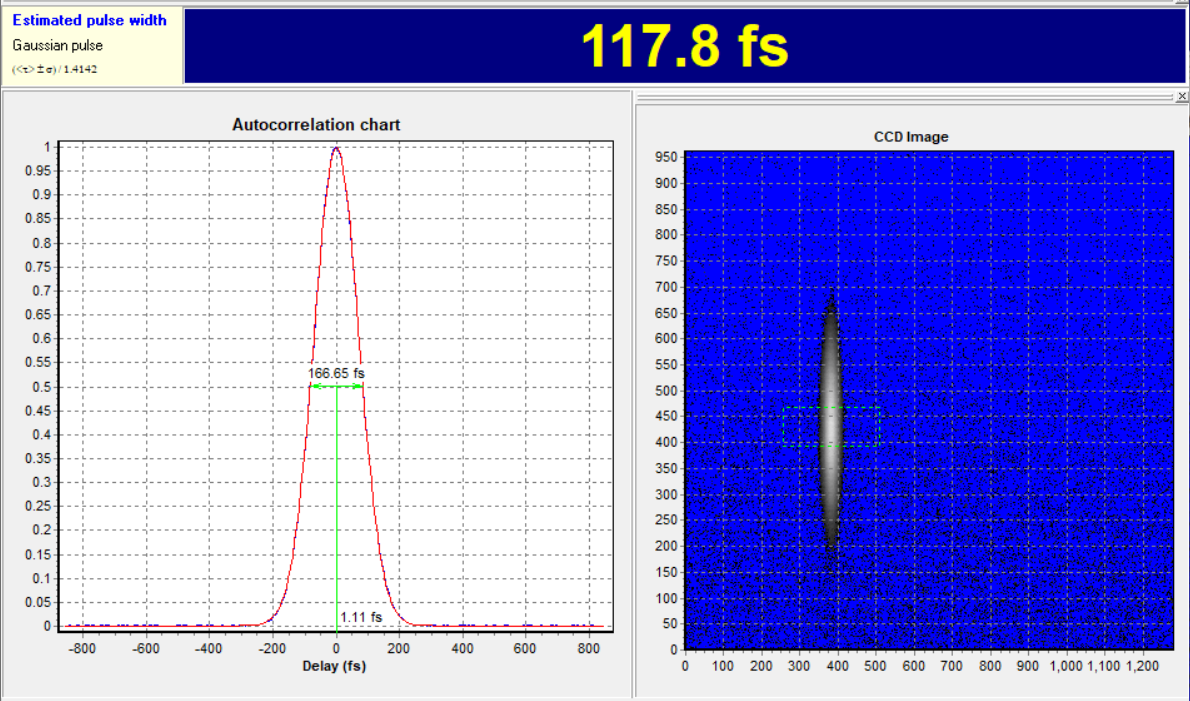

Pulse duration


Central wavelength


Pulse repetition rate

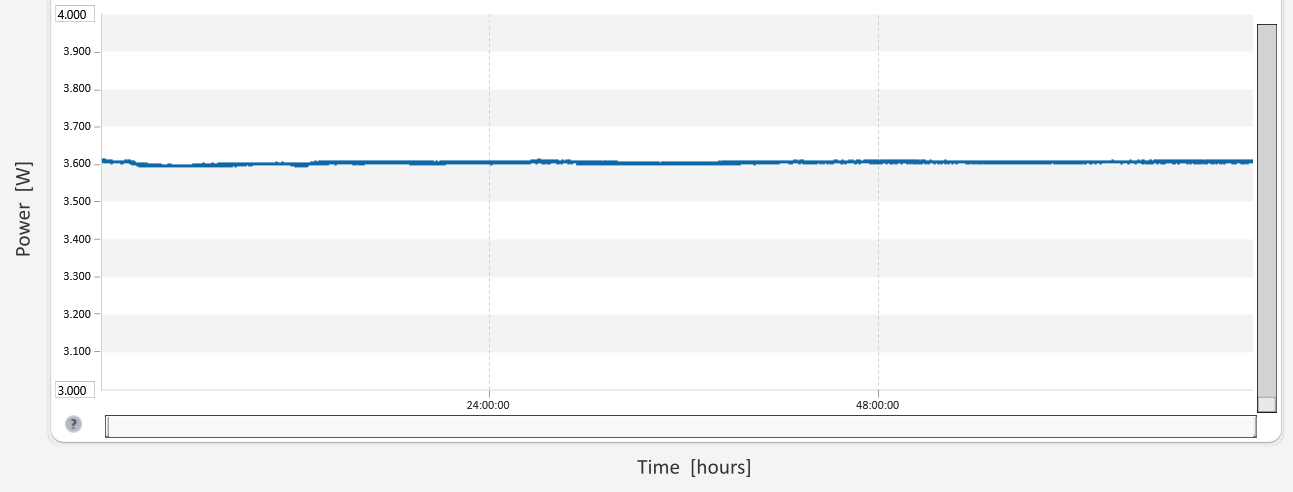

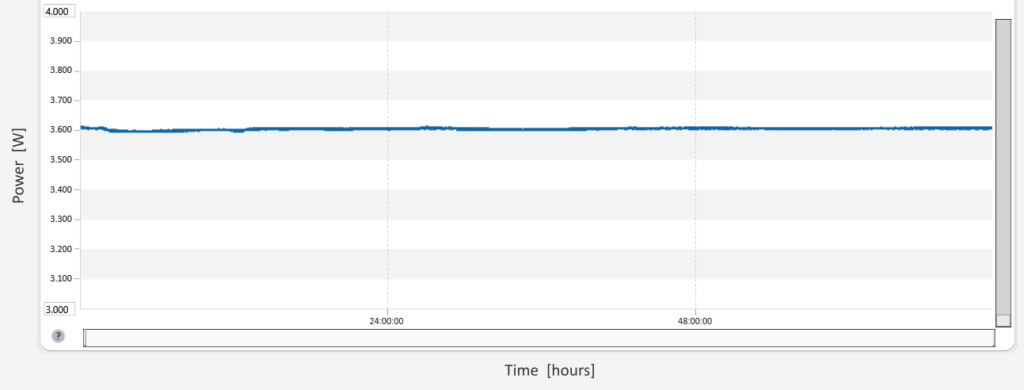

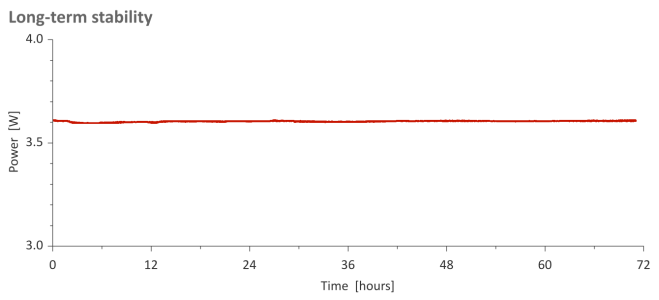

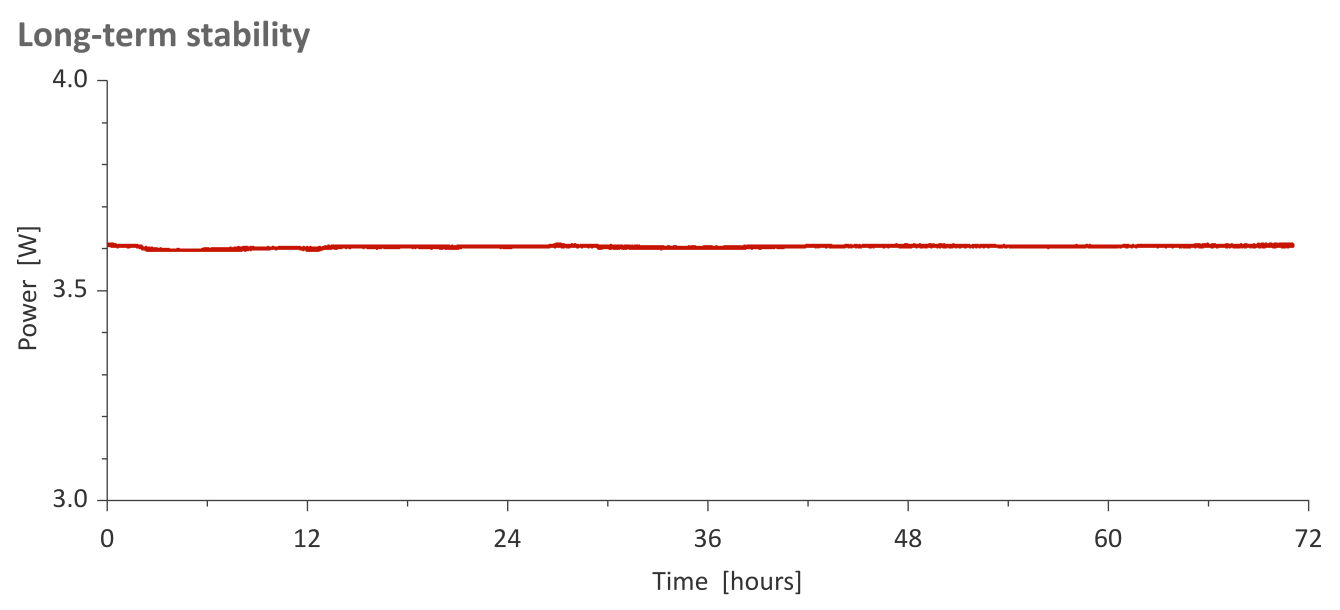

Long-term power stability


Polarization

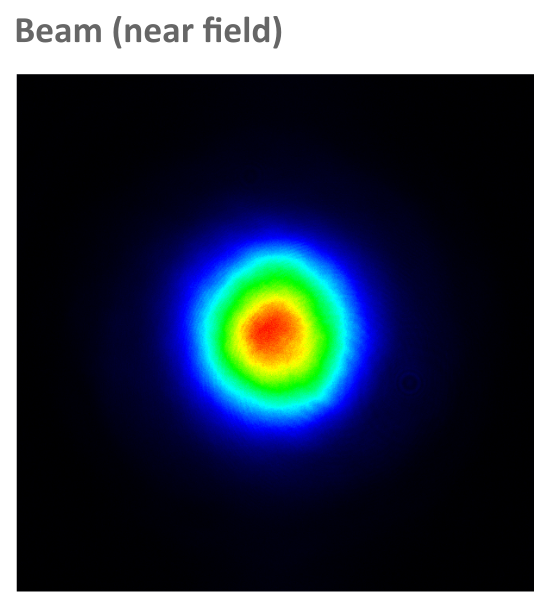

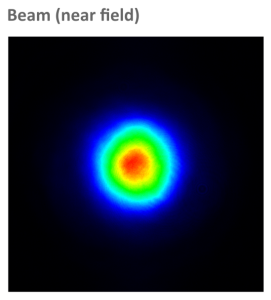

Beam diameter

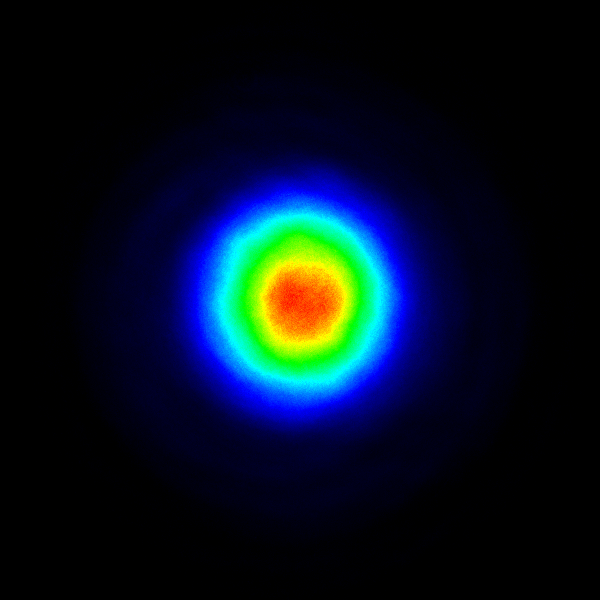

Beam quality


Cooling


Dimensions


Luna-1050-3W

3 W


>10 nm


<150 fs


























Luna-1050-3W

5 W


>8 nm


<200 fs


1050 ± 5 nm


64 ± 5 MHz


<0.5% (STD)


Linear, horizontal


1.1 ± 0.2 mm


M2 < 1.2


Closed-loop chiller


Optical head, L×W×H: 530×185×120 mm


Luna-1050-3W

7 W


>7 nm


<250 fs


























Applications

Specifications

lyo specifications

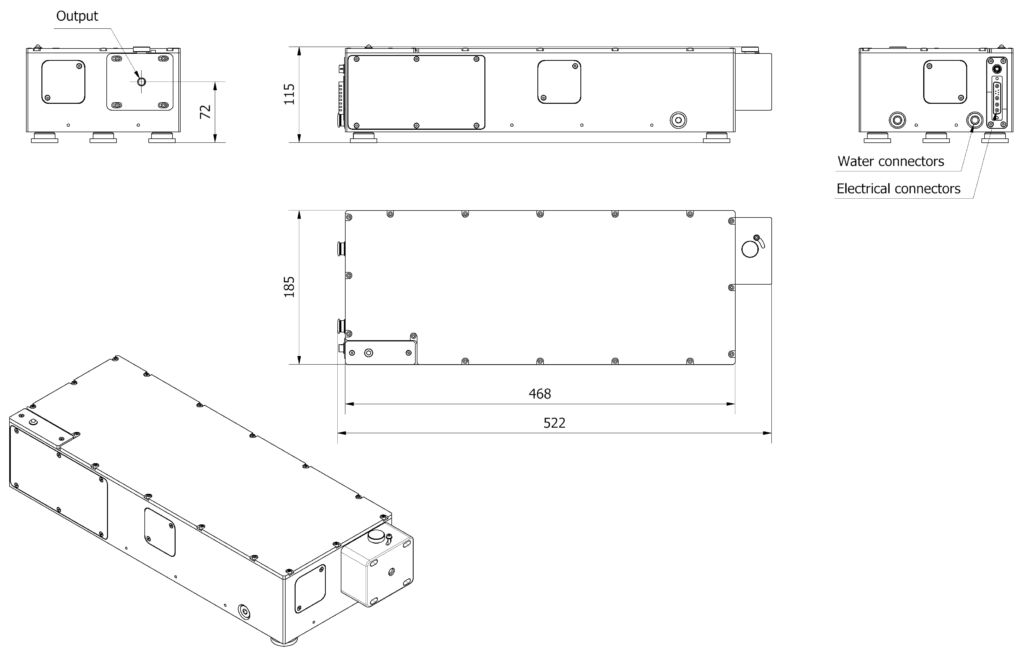

Dimensional drawing

Dimensions are in mm.

lyo 5w dimensional drawing
